GC Pattern Resin is a self-curing, general-purpose acrylic resin for dental patterns by GC Corporation, Tokyo, Japan — the prosthodontist’s favorite for making precise dental patterns. Engineered for both direct and indirect pattern-making techniques, it delivers exceptional accuracy, minimal shrinkage, and a perfectly ash-free burnout every time. Sets within 4 minutes — significantly faster than competing products.

GC Pattern Resin – Key Features

• Low Polymerization Shrinkage: Greater accuracy and dimensional stability with improved defined margins.
• High Strength: Ultra smooth surface; strength not compromised even in thin layers; no distortion.
• Excellent Fluidity: Easy manipulation due to thixotropy; high wettability for effortless powder-liquid mixing.
• Ash-Free Formula: Leaves no ash or residue after burnout; results in smoother cast surfaces.
• Quick Setting: Sets within 4 minutes; significantly faster than competing products.
• Undetectable Corrections: Additions and corrections can be made even after the material has set.

Indications

• Tapered copings for telescopic and other telescope crowns
• Inlays, palatal and lingual bars, connectors, and clasps
• Maryland bridges
• Temporary splints for soldering
• In-mouth core build-up patterns
• Implant superstructure construction

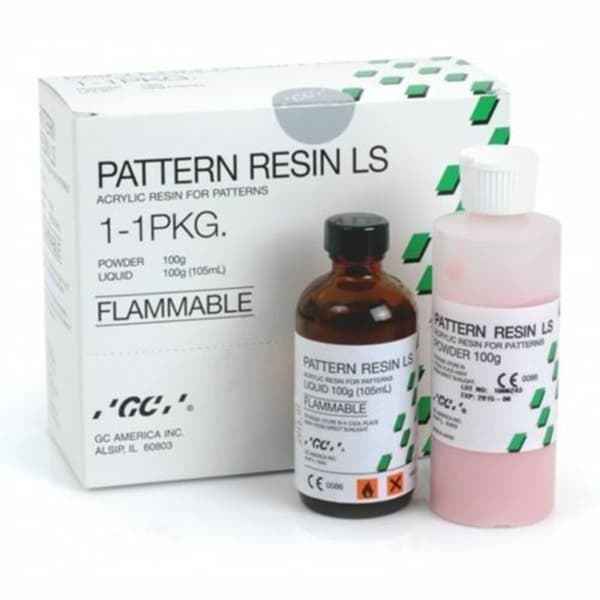

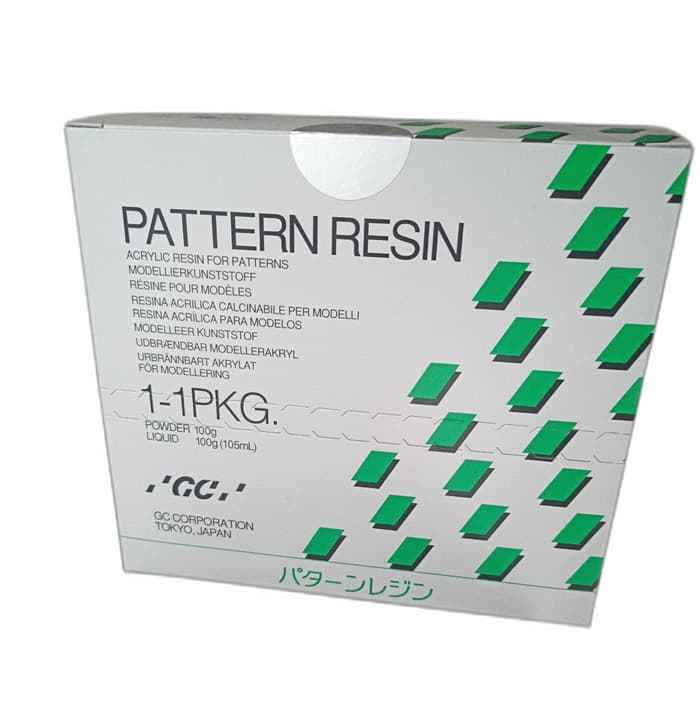

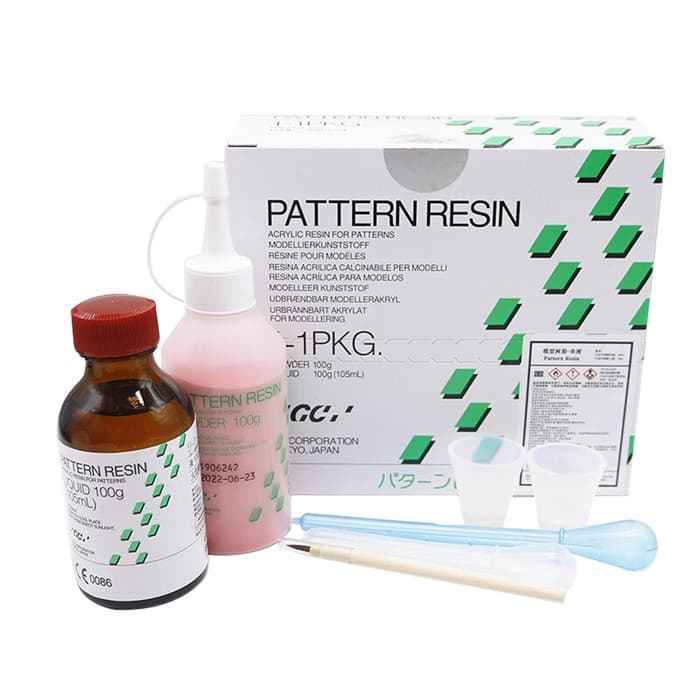

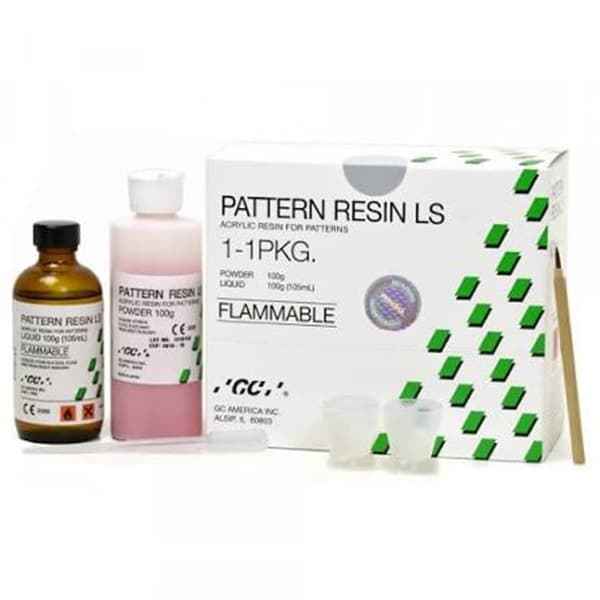

Pack Contents

• 1 × 100g Powder
• 1 × 100g (105mL) Liquid
• Mixing cups & brush

Directions for Use

1. Preparation: Dispense adequate amounts of powder and liquid into separate rubber cups.
2. Building the Coping: Moisten brush tip with liquid, pick up a small amount of powder, and deposit onto the crown. Build up progressively. Use GC Acro Sep, GC Multi-Sep, or Vaseline as separator on stone models.
3. Checking Internal Surface: After resin sets (3 min at 23°C), carefully remove pattern and check margin and internal surface.
4. Fine Adjustment: Return pattern to crown; create uniform thickness (0.3–0.4mm) using a bur.
5. Waxing & Cut Out: Perform wax-up with inlay wax. Cut out veneer for facing and place retention beads.
6. Investing, Burnout & Casting: For larger patterns, hold at 250°C for 1 hour before raising to final burnout temperature.

Warning: Liquid is highly FLAMMABLE — avoid sources of ignition. For professional dental use only. Do not mix with other chemically cured resins.

Shipping Information

Dispatched within 1–2 working days. Worldwide delivery in 7–30 days via India Post. Import duties and customs charges are the buyer’s responsibility.

Returns Policy

100% money-back guarantee within 30 days of receipt. Contact us before returning goods.

Images for illustration only.
