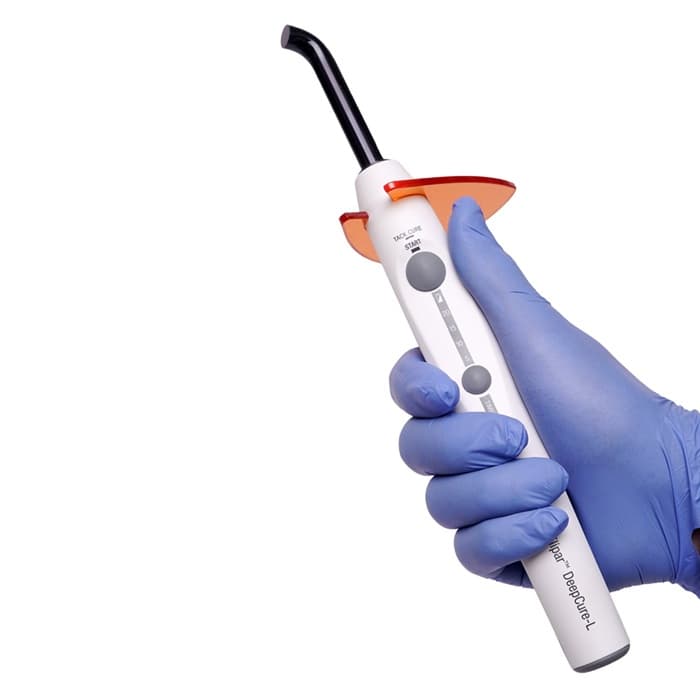

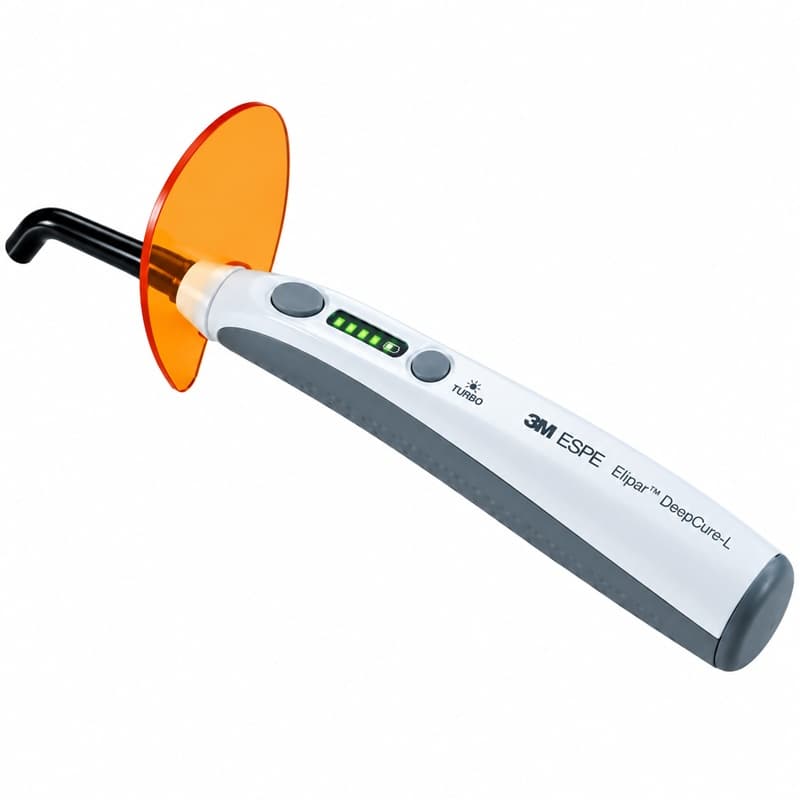

3M ESPE Elipar DeepCure-L LED Curing Light

The 3M ESPE Elipar DeepCure-L LED Curing Light is a state-of-the-art dental device designed for the polymerization of light-curing dental materials. It comprises a wireless handpiece with a built-in rechargeable lithium-ion battery and a charger. The handpiece features a high-performance LED light source with a wavelength range of 430 to 480 nm, ensuring compatibility with various dental materials. Its beam profile ensures excellent beam collimation, directing more light energy precisely where needed for deep, uniform, and complete curing of dental restorations.

The device offers customizable exposure times ranging from 1 to 120 seconds, allowing for precise control over the curing process. Safety features include a sleep mode to minimize energy consumption and protection against overexposure to high-intensity light, which could cause heat-related damage to oral tissues.

With its compact design and user-friendly operation, the Elipar DeepCure-L provides dental professionals with a reliable and efficient tool for achieving optimal results in various dental procedures, including fillings, liners, core build-ups, fissure sealants, temporary restorations, and cements for indirect restorations.

Key Features

• High-performance LED light source
• Customizable exposure times (5, 10, 15, 20 seconds, continuous mode, tack-cure mode)
• Uniform beam profile for precise polymerization
• Wireless handpiece with replaceable lithium-ion battery
• Sleep mode and protection against overexposure
• Compatible with a wide range of light-curing dental materials
• Compact and ergonomic design

Key Specifications

• Light Source: High-performance LED
• Wavelength Range: 430–480 nm
• Peak Wavelength: 444–452 nm
• Light Intensity: 1470 mW/cm² (between 400 and 515 nm)
• Light Emission Area: 60–65 mm² (optically active)
• Power Supply: Lithium-ion battery
• Exposure Time Settings: 5, 10, 15, 20 seconds; Continuous mode (120 seconds); Tack-cure mode (1 second)
• Battery Capacity: 2300 mAh

Packaging

• 1 × 3M ESPE Elipar DeepCure-L

Directions for Use

1. Ensure the device is fully charged before use.
2. Verify that the light guide is clean and securely attached to the handpiece.
3. Press the power button to turn on the device.
4. Select the appropriate exposure time setting.
5. Direct the light beam towards the area requiring treatment.
6. Hold the handpiece steady and activate the curing light.
7. After curing, deactivate the light and remove from the treatment area.
8. Turn off the device by pressing the power button.
9. Recharge when the battery indicator shows a steady red light.
10. Clean the light guide and handpiece regularly per manufacturer's instructions.

Safety Precautions

• Follow all safety instructions in the user manual.
• Use appropriate protective equipment such as goggles to shield eyes from intense light.

Note: Images are for illustration only. Company may change item design / pattern / packaging from time to time. We will ship latest stock available.
